4K IP Camera Tester 7inch IPS Touch Screen POE WiFi HDMI IPC Tester S53739
Sale price
$24.90
Regular price $109.01
Skip to product information

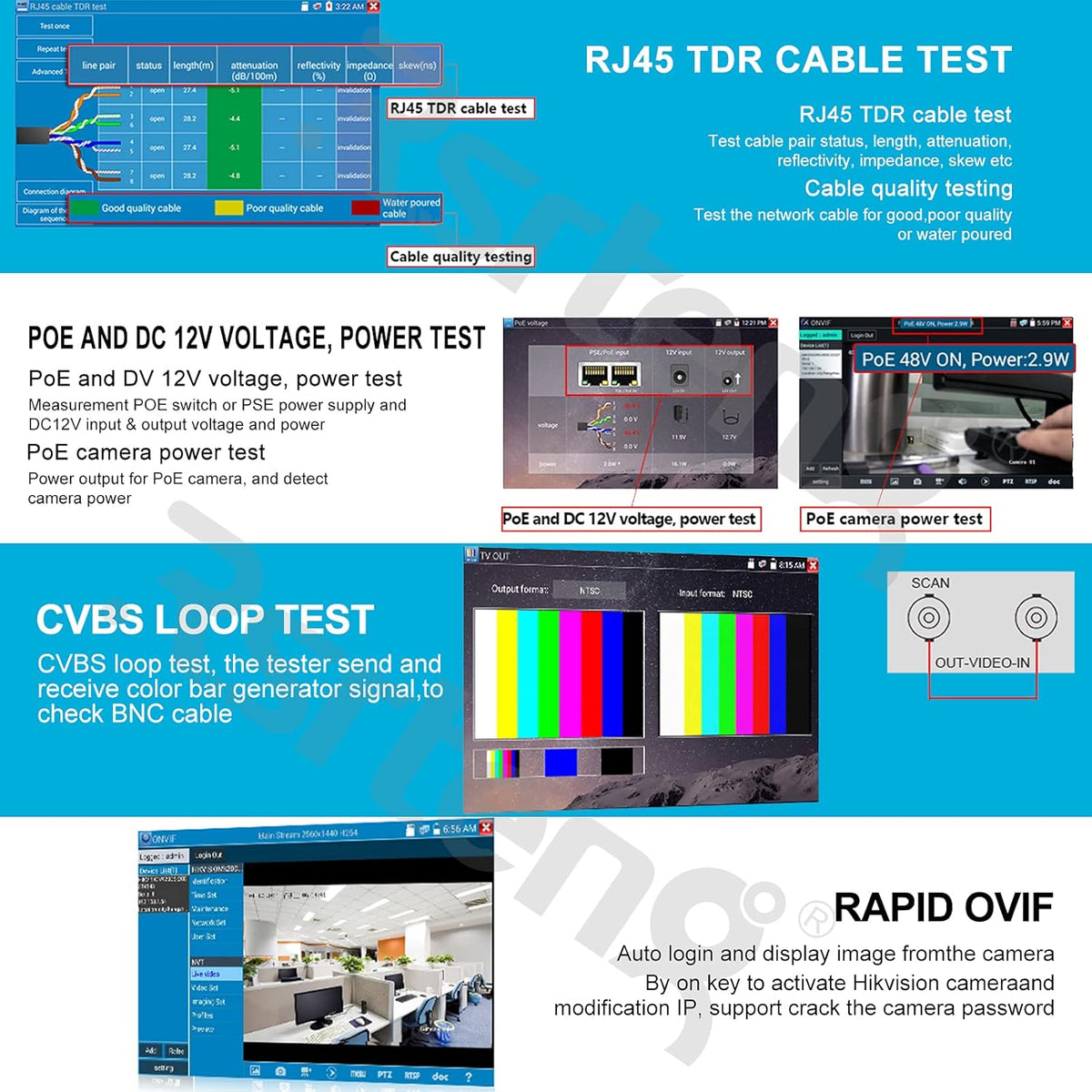

【IP Camera Tester】Network camera tester support max 12MP 4K H.265/H.264 IP PoE Camera test. Powerful network tools to help you detect and set various network parameters.Support UTP cable test, POE test RJ45 TDR cable test. Its portability, user-friendly design and many other functions make the IPC camera tester an essential tool for all installers.

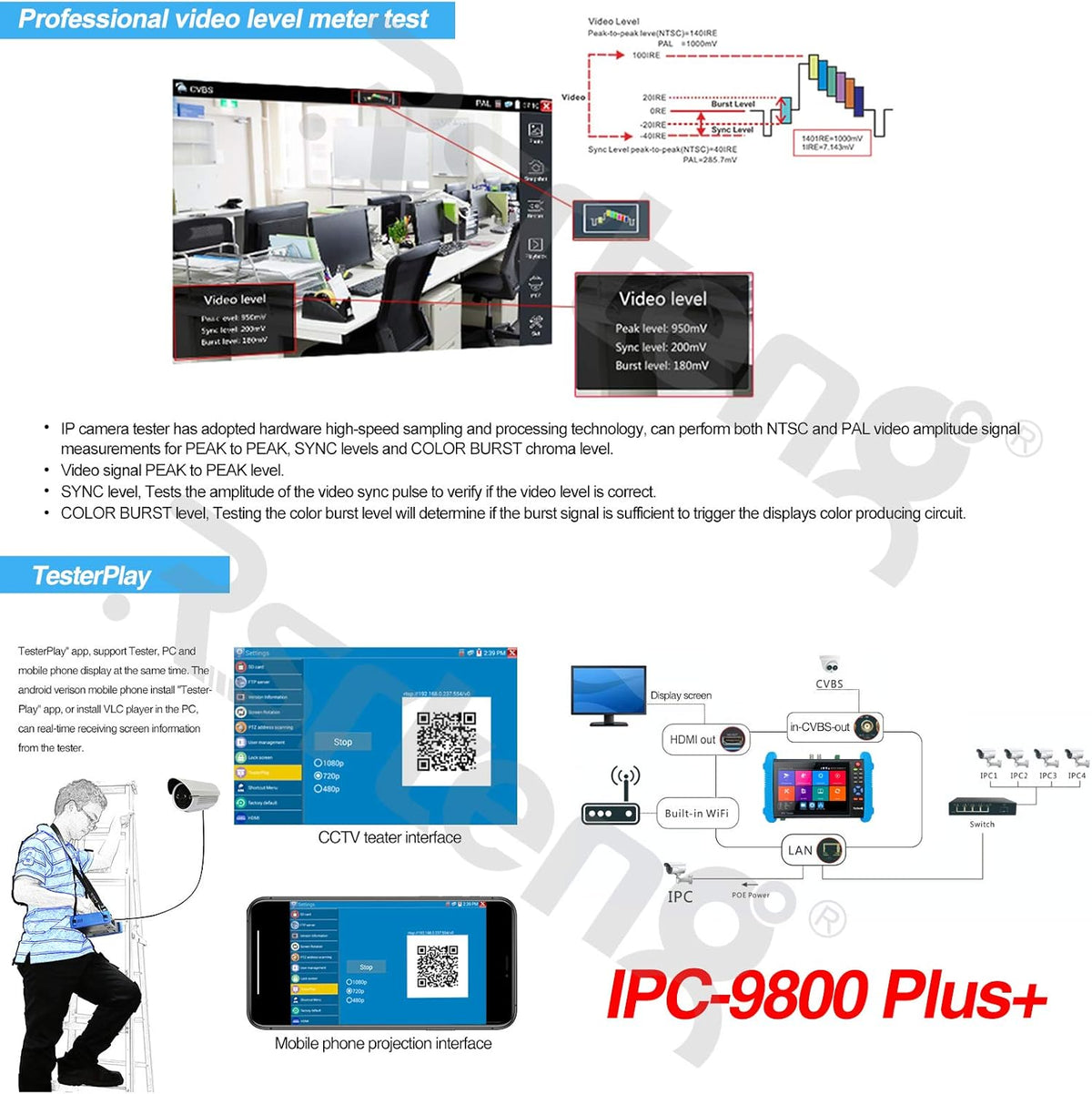

【Analog CVBS Camera Tester】Support BNC input, NTSC/PAL (Auto adapt). PTZ control, RS485 control, Baud 600-115200bps, compatible with more than 30 protocols such as PELCO-D/P, Samsung, Panasonic etc.IP& CVBS test at the same time, converter test from analog to digital with dual test window.
【Security Tools】The POE function of the network camera tester built-in special tools for Hik and DH, support batches of fast setting of Hik and DH cameras. At the same time, it has built-in OVIF test tool and other brand camera test tools, which can be compatible with most existing cameras. Use it to make your installation simple and efficient.

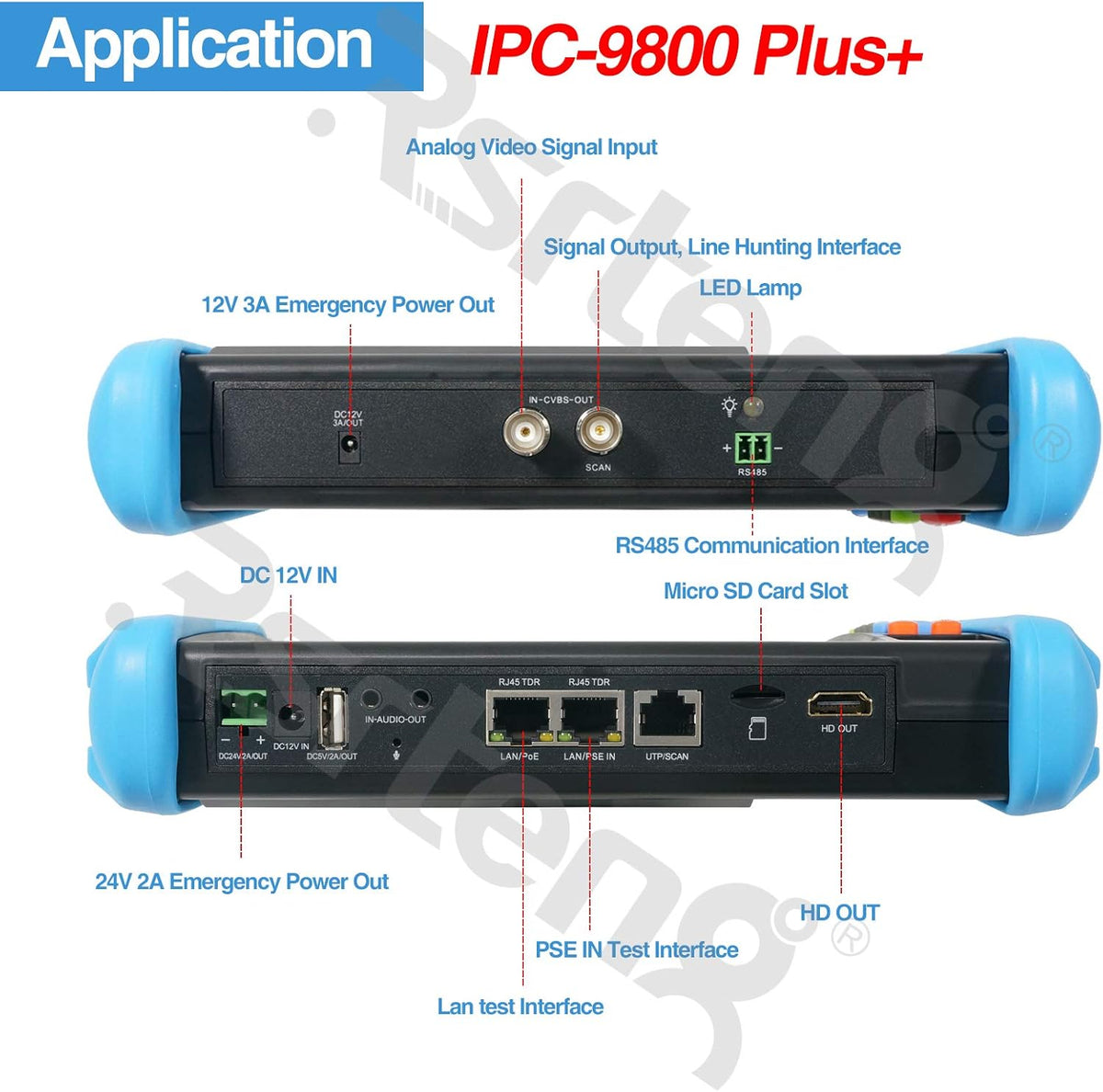

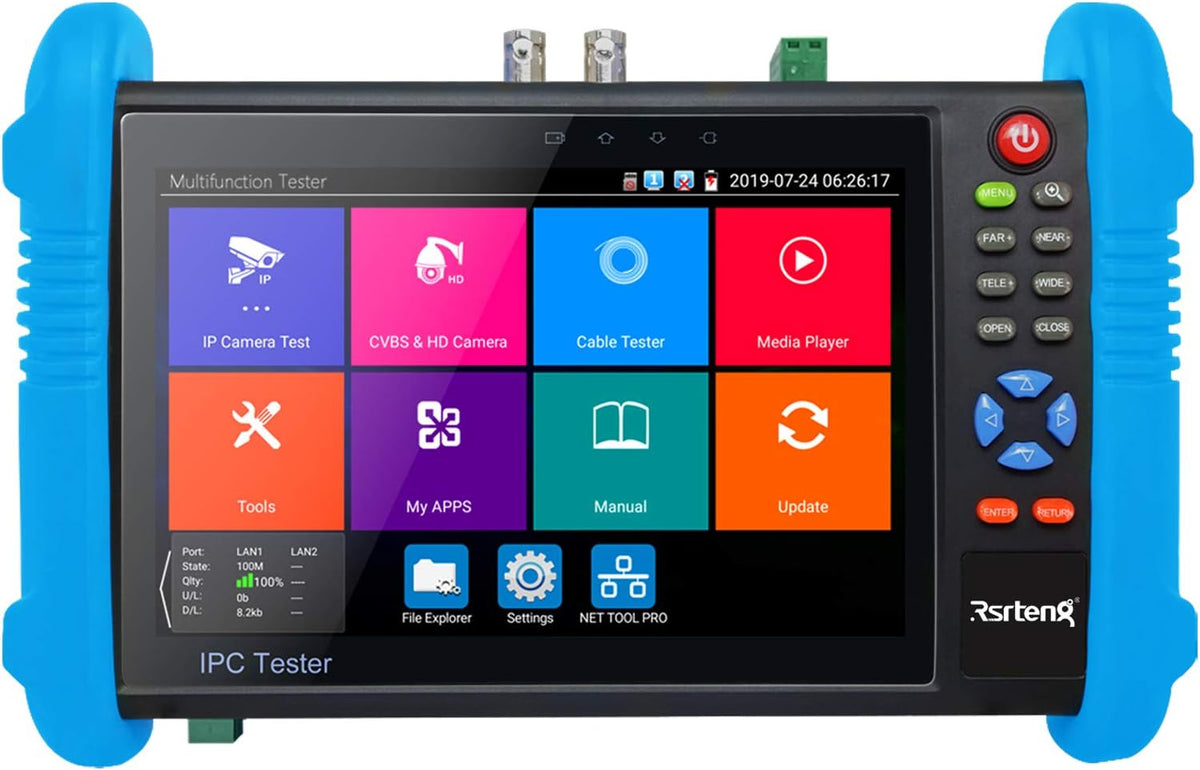

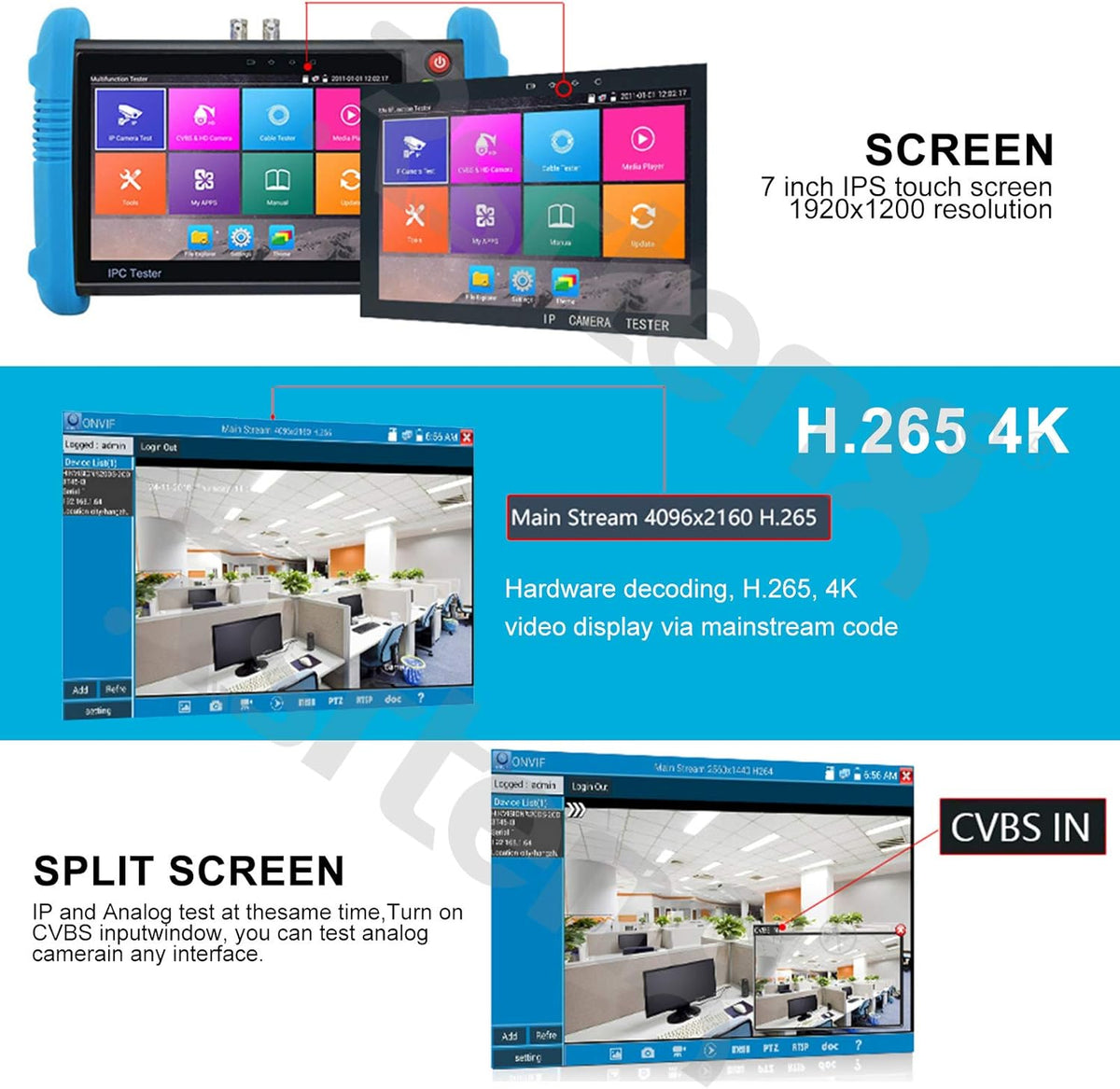

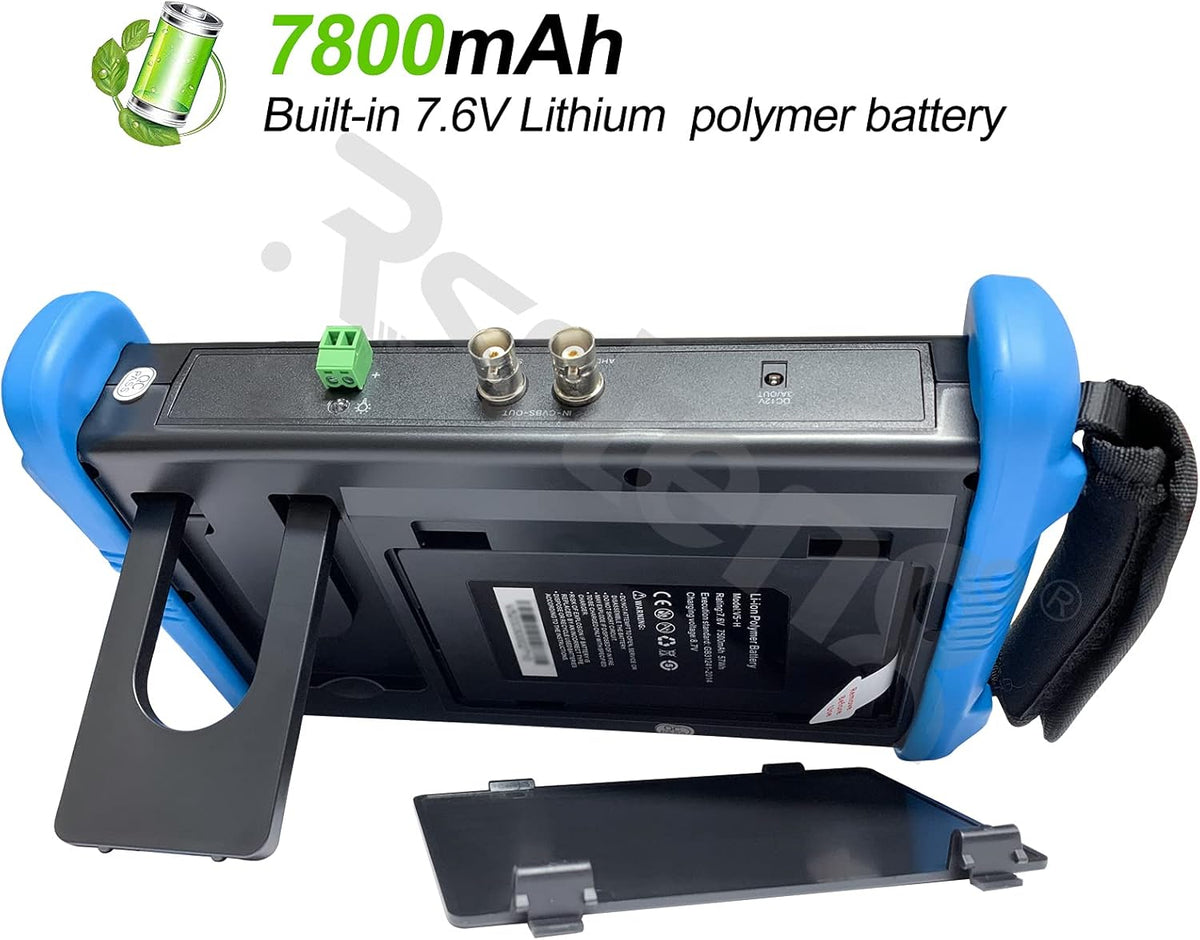

【More parameters Camera Tester】7 inch IPS touch screen, 1920*1200 resolution. built-in 7.6V/7800mAh 59.28Wh battery. Dual Ethernet port 10/100/1000Mbps, Support RS485, Audio I/O, HDMI output, WiFi, DC output:24V/2A,12V/3A,5V/2A, LED lamp, Uses Android system, so you can install the APP in it. Cemera tester Dimension/Net weight 9.4 x 5.3 x 1.4 inch/0.9kg(1.98lbs).
【100% Satisfaction Guarantee】Continue to browse our web page wi'll get more detailed parameters.We tested every cctv camera tester before we sent it to the Amazon warehouse, to ensure that you will not receive defective products. We offer 24h technical support and 1 year warranty. If there are any issues, pls feel free to contact us.
4K IP Camera Tester 7inch IPS Touch Screen POE WiFi HDMI IPC Tester S53739
Sale price
$24.90
Regular price $109.01
Shipping calculated at checkout.
【IP Camera Tester】Network camera tester support max 12MP 4K H.265/H.264 IP PoE Camera test. Powerful network tools to help you detect and set various network parameters.Support UTP cable test, POE test RJ45 TDR cable test. Its portability, user-friendly design and many other functions make the IPC camera tester an essential tool for all installers.
【Analog CVBS Camera Tester】Support BNC input, NTSC/PAL (Auto adapt). PTZ control, RS485 control, Baud 600-115200bps, compatible with more than 30 protocols such as PELCO-D/P, Samsung, Panasonic etc.IP& CVBS test at the same time, converter test from analog to digital with dual test window.
【Security Tools】The POE function of the network camera tester built-in special tools for Hik and DH, support batches of fast setting of Hik and DH cameras. At the same time, it has built-in OVIF test tool and other brand camera test tools, which can be compatible with most existing cameras. Use it to make your installation simple and efficient.
【More parameters Camera Tester】7 inch IPS touch screen, 1920*1200 resolution. built-in 7.6V/7800mAh 59.28Wh battery. Dual Ethernet port 10/100/1000Mbps, Support RS485, Audio I/O, HDMI output, WiFi, DC output:24V/2A,12V/3A,5V/2A, LED lamp, Uses Android system, so you can install the APP in it. Cemera tester Dimension/Net weight 9.4 x 5.3 x 1.4 inch/0.9kg(1.98lbs).
【100% Satisfaction Guarantee】Continue to browse our web page wi'll get more detailed parameters.We tested every cctv camera tester before we sent it to the Amazon warehouse, to ensure that you will not receive defective products. We offer 24h technical support and 1 year warranty. If there are any issues, pls feel free to contact us.

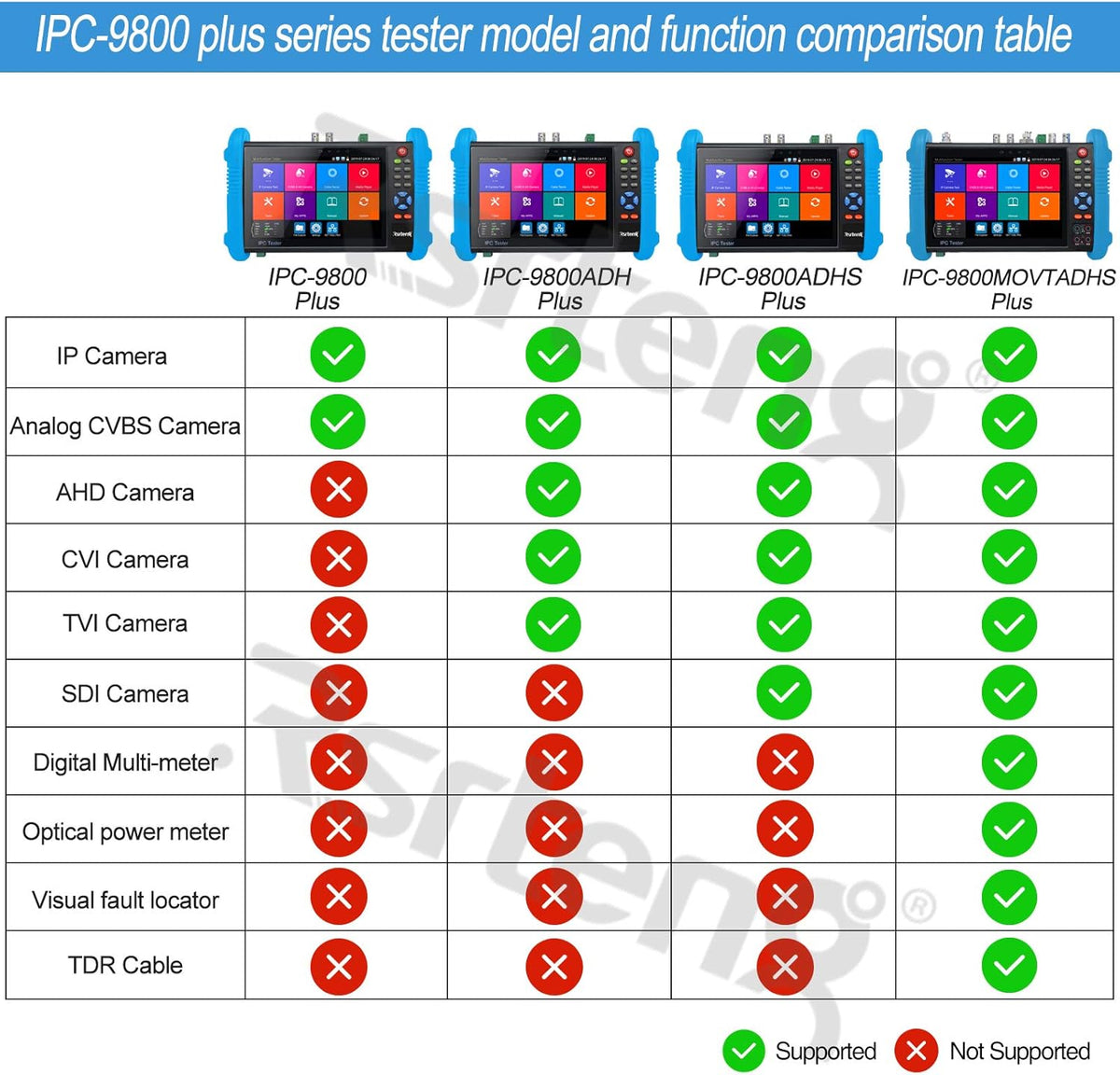

| IPC-9800 plus+ | IPC-9800ADHS plus+ | IPC-7300 O | IPC-9800MOVTADHS plus+ | X7-MOVTADHS | X9-MOVTADHS | |
|---|---|---|---|---|---|---|
| Screen size and resolution | 7 inch touch screen (1920*1200P) | 7 inch touch screen (1920*1200P) | 7 inch touch screen (1920*1200P) | 7 inch touch screen (1920*1200P) | 7 inch touch screen (1920*1200P) | 8 inch touch screen (2048*1536P) |
| 12MP IP Camer a Test and CVBS Camera Test | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| 4K 8MP TVI/CVI/AHD/SDI Camera Test | N/A | ✓ | ✓ | ✓ | ✓ | ✓ |
| HDMI In/Out | Only HDMI Output | ✓ | ✓ | ✓ | ✓ | ✓ |
| Digital Multi-meter | N/A | N/A | N/A | ✓ | ✓ | ✓ |
| Optical power meter | N/A | N/A | ✓ | ✓ | ✓ | ✓ |
| TDR breakpoint test (hardware support) | only RJ45 TDR(software support) | only RJ45 TDR(software support) | ✓ | ✓ | ✓ | ✓ |
| Visual failt locator | N/A | N/A | N/A | ✓ | ✓ | ✓ |
| Power Output:5V/12V/24V | 5V.2A/12V.3A/24V.2A | 5V.2A/12V.3A/24V.2A | 5V 2A/12V 3A/24V 2A | 5V.2A/12V.3A/24V.2A | 5V.2A/12V.3A/24V.2A | 5V.2A/12V.3A/24V.2A |
| Dual Gigabit Ethernet Ports | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
